Smart Coating Line Integration System

Introducing European craftsmanship, we meticulously craft high-value, energy-efficient coating production lines.

One-Stop Coating Solutions

A system solution provider specializing in powder coating production lines, paint coating production lines, and electrophoretic coating production lines.

Powder Coating Production Line

Environmentally friendly and pollution-free, with a powder recovery rate as high as 98% and a comprehensive utilization rate exceeding 95%.

Paint Coating Production Line

Water Curtain + Cyclone Paint Mist Treatment System: Reduces emissions, saves consumables, and improves the work environment.

Electrophoretic Coating Production Line

Ultra-deep drainage, silicon carbide rectifier, delivering exceptional corrosion resistance and uniform coating.

Advantages

Our Three Core Advantages

Analyzing and resolving production challenges on coating lines from the customer’s perspective, we develop energy-efficient equipment to achieve a win-win outcome.

Maximize cost reduction by controlling operational expenses at the source

Through unique pretreatment anti-leakage fluid, efficient powder recovery, and fully sealed curing furnace technology, it directly reduces waste in the three core consumables: chemicals, coatings, and energy.

Empowered by Intelligence, Crafting Stable, High-Quality Products

Integrated robotic recognition and automation systems deliver stable coatings with uniform film thickness and exceptional adhesion, minimizing human error while enhancing product competitiveness and yield rates.

Craftsmanship ensures long-term reliable operation of equipment.

The all-bridge furnace body, snap-fit piping, and multi-seal construction ensure low failure rates and extended service life, delivering consistent high productivity for a decade.

Intelligent Preprocessing System

Reduce medication consumption and enhance quality

Anti-spill Liquid Design

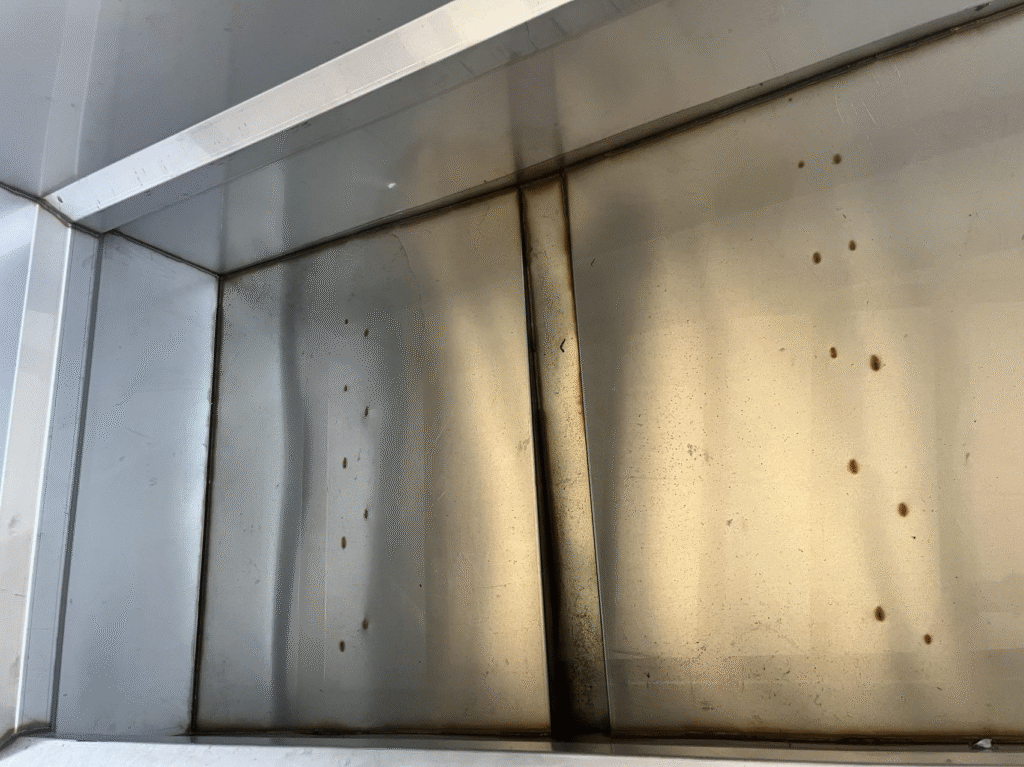

Three-stage sloped bottom beams, rapid reflux

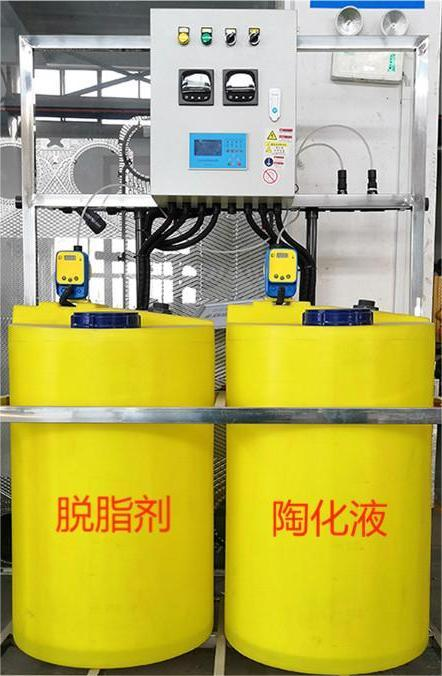

Automatic Chemical Dosing System

Intelligent pH monitoring, precise ratio control.

Maintenance-Friendly Design

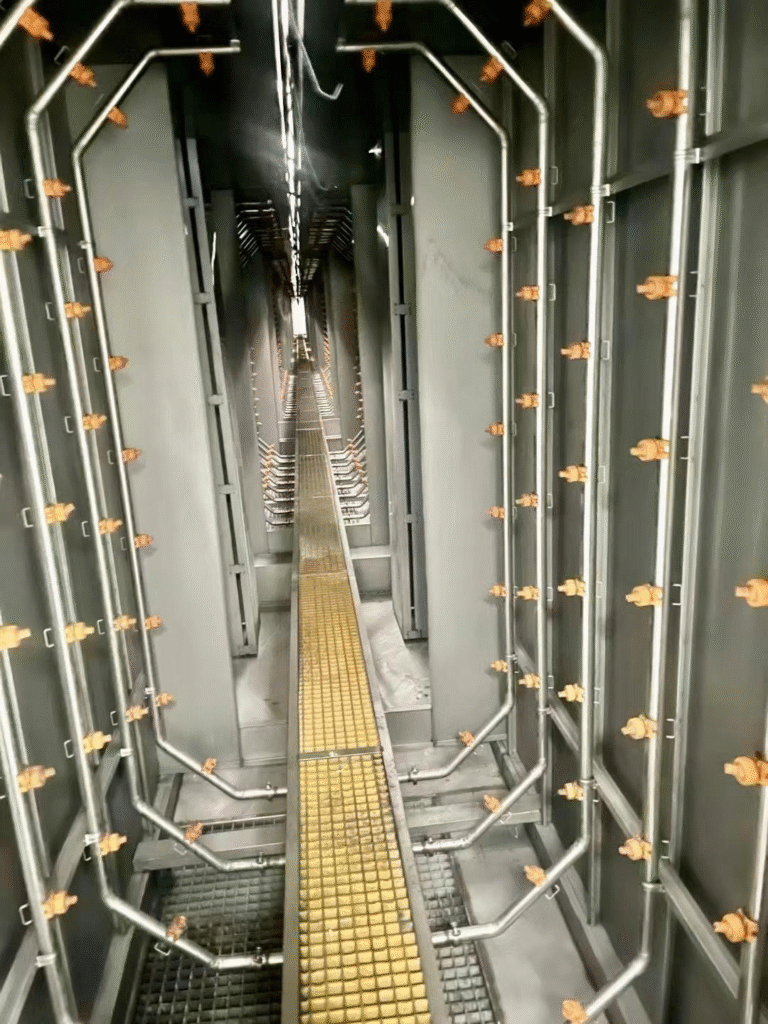

Snap-fit branch pipes, fiberglass inspection access, bag filters.

High-Efficiency Heat Exchange

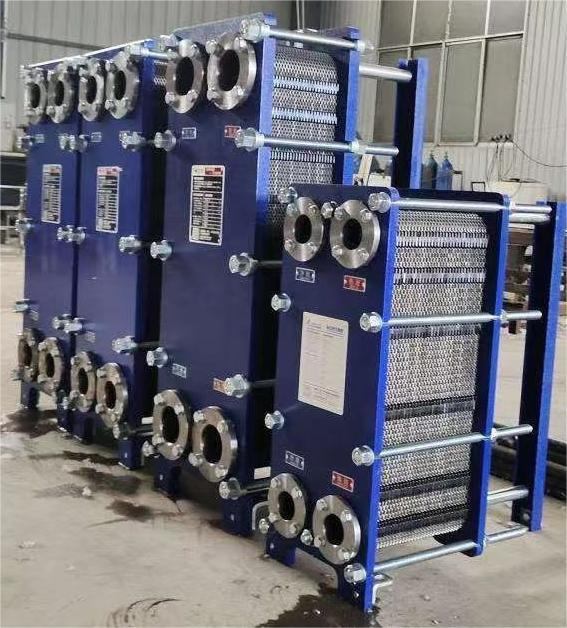

Plate heat exchangers ensure optimal performance in cold weather.

Industry-leading powder utilization rate

High-Efficiency Spraying and Recovery System

European Cyclone Recovery: 98% powder recovery rate.
Robotic Intelligent Recognition: Automatic gun activation/deactivation and automatic overspray compensation save powder.
Superior Lift-Off Technology: Solves complex workpiece coating challenges with uniform film thickness.
Transparent Isolation: 6mm tempered glass maintains a tidy and bright workshop environment.

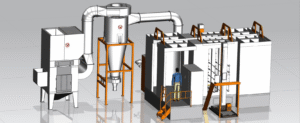

The spray booth system incorporates a European cyclone powder booth, integrating top international and domestic brands to achieve a 98% powder recovery rate. This reduces powder waste and improves the spraying environment.

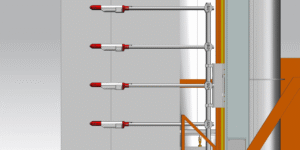

The spray gun features premium selections from renowned international and domestic brands, delivering exceptional powder application performance. It overcomes challenges in coating hard-to-reach areas, ensuring uniform film thickness across the entire surface. The powder utilization rate reaches up to 95% or higher.

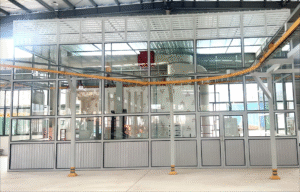

The spray booth isolation room is constructed with 8mm tempered glass, providing excellent natural lighting that eliminates the need for artificial lighting during daytime hours. This not only enhances the environment but also contributes to a more organized workshop layout.

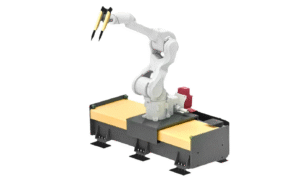

Automatically detects workpiece movement speed, enabling the robot to automatically perform touch-up spraying on complex positions.

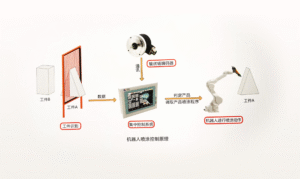

Grating and laser recognition systems enable automated unmanned spraying operations. When no workpiece is present, the spray gun ceases powder discharge, thereby conserving powder to a certain extent.

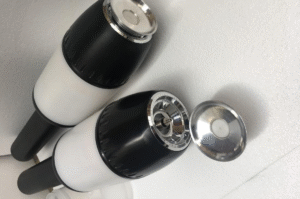

Leveraging the high powder deposition efficiency of integrated rotary cup sprayers, the 6000 RPM rotational speed achieves superior powder coverage, delivers more uniform surface film thickness, and reduces powder consumption.

Energy-Saving Curing Oven System

Lock in heat energy, reduce energy consumption

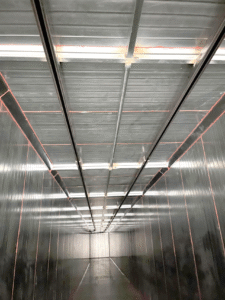

Mechanism plate furnace plate joints filled with insulation wool. Inside the furnace, upper, lower, left, and right sides sealed with beveled plates and treated with high-temperature adhesive. Guaranteed no heat leakage for ten years.

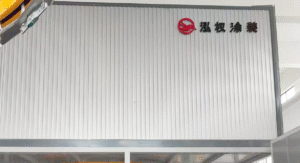

Crafted with Swiss manufacturing techniques, the oven’s exterior features a distinctive corrugated design, creating a strong three-dimensional effect with a substantial, weighty appearance.

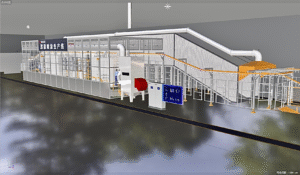

Unique full-bridge design structure with downward-pressing inlet and outlet locks in heat energy, preventing temperature loss. This design compresses the internal space for sustained heat retention, delivering energy savings.

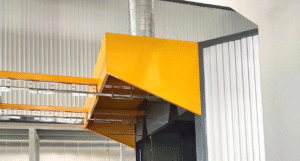

Curing ovens come standard with large-area exhaust hoods at both the inlet and outlet to prevent smoke leakage from affecting the workshop environment. The exhaust hoods and external oven frames are coated with high-quality paint, ensuring an attractive appearance that resists fading over extended periods.

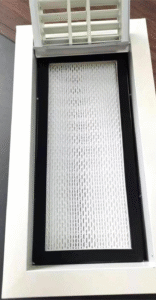

High-temperature filtration devices installed at the furnace’s hot air supply ports prevent particulate matter from circulating within the furnace, thereby avoiding foreign material adhesion to coated surfaces and ensuring consistent quality.

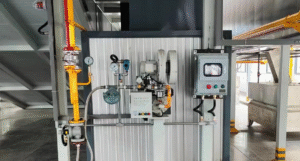

The burner employs proportional air and fuel supply for complete combustion and energy efficiency. Equipped with an air intake filter to prevent particulate matter from entering the furnace, it utilizes premium high-temperature fans from leading domestic brands to maintain furnace temperature within ±3°C.

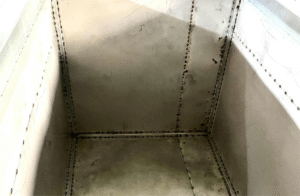

The combustion chamber is equipped with a high-temperature filter mesh, featuring fully welded internal seams and air ducts to ensure zero heat leakage for ten years.

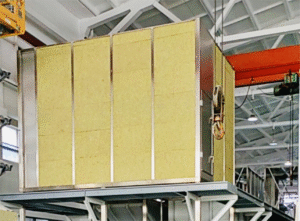

The interior of the handcrafted panel features full stainless steel welding, ensuring no heat leakage and a service life of up to 30 years with lasting thermal integrity.

Innovative Solutions for Growth

Explore our comprehensive selection of services that cater to a variety of needs, ensuring complete customer satisfaction.

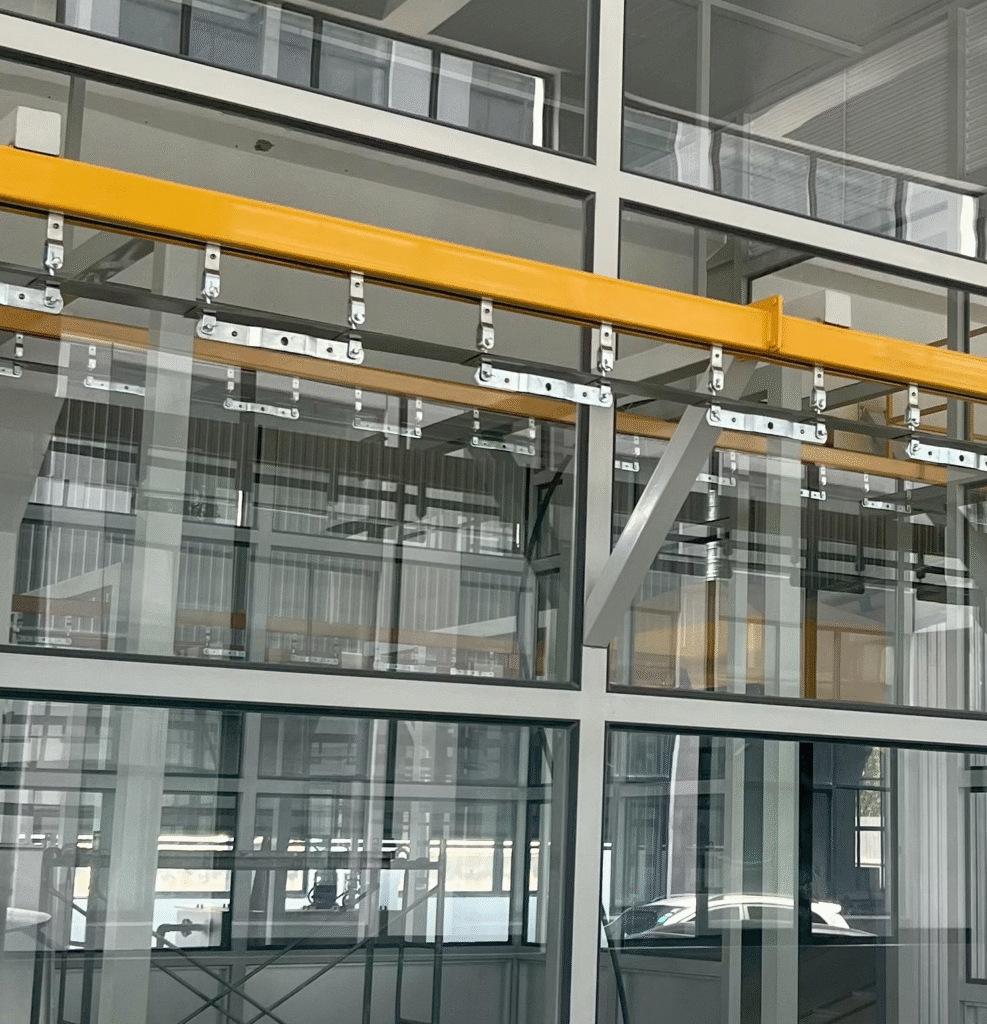

Closed suspension chains are widely used in general industrial applications.

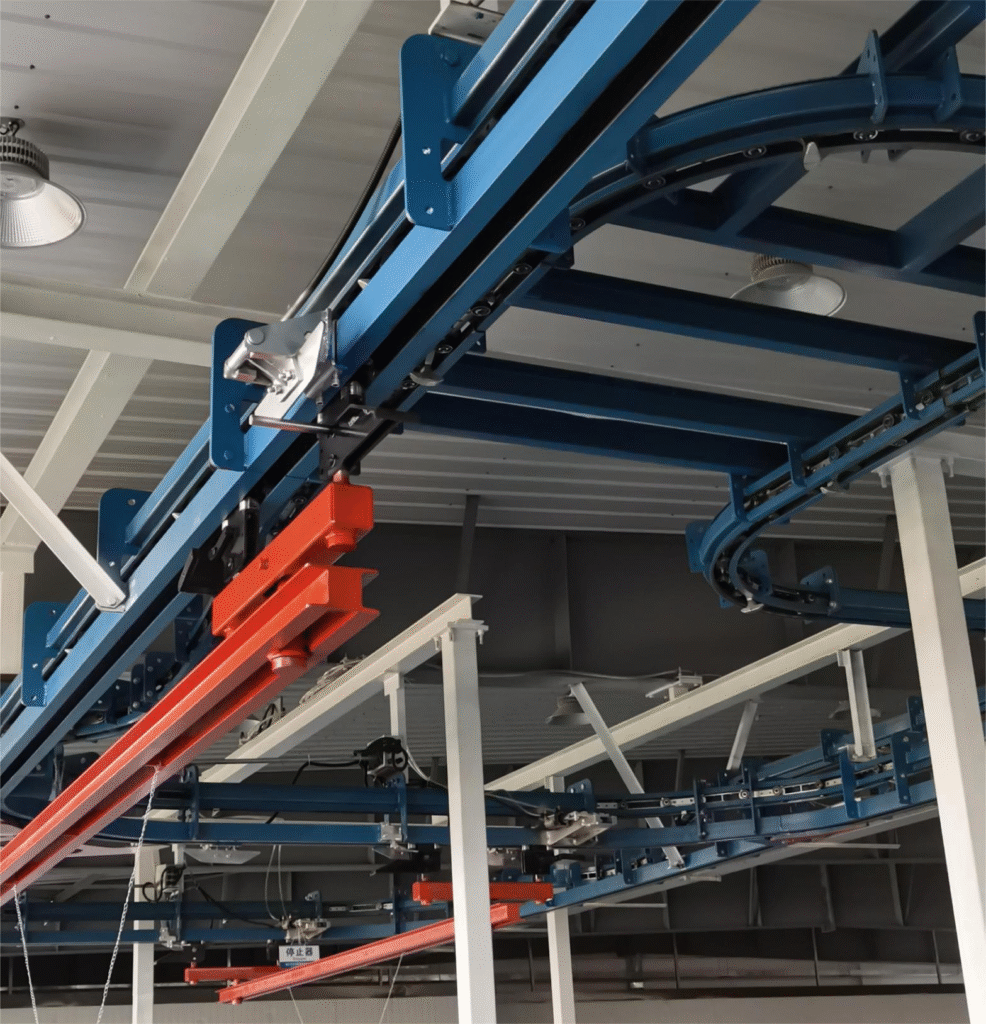

Accumulating chains are widely used in the large-item and heavy-duty sectors.

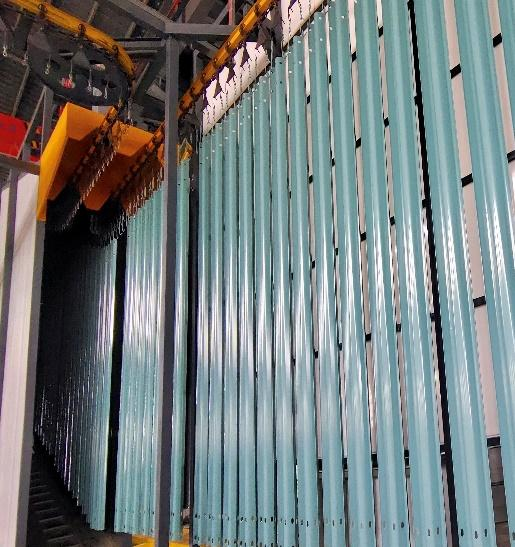

Die-forged chains are widely used in heavy-duty components.

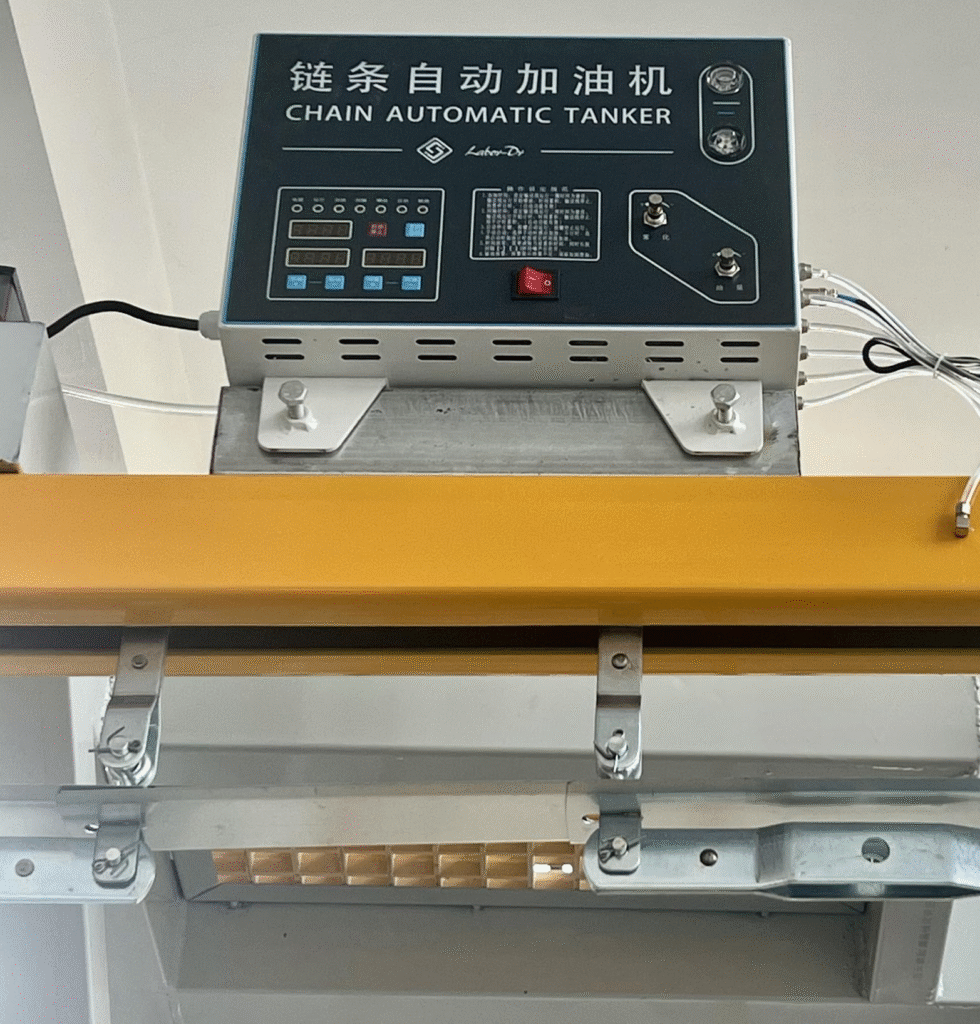

The entire conveyor chain is equipped with oil pans and automatic lubricators to achieve automated lubrication.
